Understanding AWS IMDSv1 and IMDSv2 from a Security Perspective

When operating AWS EC2, you often encounter the terms IMDSv1 and IMDSv2.

IMDS stands for Instance Metadata Service, a service that allows an EC2 instance to query its own metadata from within the instance.

For example, inside an EC2 instance, you can query the following information:

Instance ID
AMI ID
Region
Availability Zone
Network information
IAM Role name
IAM Role temporary credentials

Among these, the most important from a security perspective are the IAM Role temporary credentials.

If an IAM Role is attached to an EC2 instance, applications do not need to store Access Keys directly in code or environment variables.

Instead, they can obtain temporary credentials via IMDS and call AWS APIs.

This structure itself is a very good security design.

However, if the application has vulnerabilities like SSRF, the story changes.

1. Where is IMDS located?

Inside an EC2 instance, IMDS can be accessed at the following link-local address:

http://169.254.169.254/latest/meta-data/

For example, to query the instance ID, you would run the following:

curl http://169.254.169.254/latest/meta-data/instance-id

If an IAM Role is attached to the instance, you can check the Role name at the following path:

curl http://169.254.169.254/latest/meta-data/iam/security-credentials/

Knowing the Role name allows you to query the temporary credentials for that Role.

curl http://169.254.169.254/latest/meta-data/iam/security-credentials/ROLE_NAME

The information returned here includes the following values:

AccessKeyId
SecretAccessKey
Token
Expiration

In other words, applications running inside an EC2 instance can obtain the temporary credentials needed to call AWS APIs via IMDS.

2. How IMDSv1 Works

IMDSv1 has a very simple structure.

Metadata can be queried with just an HTTP GET request, without the need for a separate token.

Here’s an example:

curl http://169.254.169.254/latest/meta-data/

IAM Role temporary credentials can also be queried as follows:

curl http://169.254.169.254/latest/meta-data/iam/security-credentials/

The advantages of IMDSv1 are its simplicity and compatibility.

It works easily with older AWS SDKs, older agents, and older scripts.

However, from a security perspective, this simplicity can be a problem.

3. Security Issues with IMDSv1

The biggest problem with IMDSv1 is that requests do not require a separate token.

IMDS is originally a service accessible only from within an EC2 instance.

Therefore, external users cannot directly access 169.254.169.254 from the internet.

However, if a web application has an SSRF vulnerability, an attacker can make the application server access IMDS on their behalf.

For example, let’s assume a web service has a feature where you input a URL, and the server fetches that URL on your behalf.

https://example.com/fetch?url=http://example.org/image.png

If this feature operates without URL validation, an attacker can make a request like this:

https://example.com/fetch?url=http://169.254.169.254/latest/meta-data/iam/security-credentials/

In this case, the external attacker does not directly access IMDS, but the web application inside the EC2 instance accesses IMDS on their behalf.

This is a typical scenario where SSRF and IMDSv1 combine to become dangerous.

4. Why is it Dangerous When SSRF and IMDSv1 are Combined?

If an attacker can access IMDS via SSRF, the following information may be exposed:

IAM Role name attached to the EC2 instance
Temporary Access Key
Temporary Secret Key
Session Token
Credential expiration time

If the EC2 Role has excessive permissions, the scope of damage increases.

For example, if the Role includes the following permissions, it is very dangerous:

Full S3 access
Full Secrets Manager access
Full DynamoDB access
EC2 creation/deletion permissions
IAM PassRole
Administrator privileges

Ultimately, the problem is not simply “whether IMDSv1 was used.”

From the perspective of an actual security incident, the following factors interact:

Does the application have an SSRF vulnerability?
Is IMDSv1 allowed on the EC2 instance?
Are the EC2 Role permissions excessive?
Has access to the metadata address not been blocked at the network or application level?

5. How IMDSv2 Works

IMDSv2 was introduced to mitigate the security weaknesses of IMDSv1.

The core is a token-based session.

With IMDSv2, you cannot query metadata directly.

First, you must obtain a token using a PUT request.

TOKEN=$(curl -X PUT "http://169.254.169.254/latest/api/token"
  -H "X-aws-ec2-metadata-token-ttl-seconds: 21600")

Then, you must include the token as a header in your metadata request.

curl -H "X-aws-ec2-metadata-token: $TOKEN"
  http://169.254.169.254/latest/meta-data/instance-id

The same applies to querying IAM Role credentials.

ROLE_NAME=$(curl -H "X-aws-ec2-metadata-token: $TOKEN"
  http://169.254.169.254/latest/meta-data/iam/security-credentials/)

curl -H "X-aws-ec2-metadata-token: $TOKEN"
  http://169.254.169.254/latest/meta-data/iam/security-credentials/$ROLE_NAME

In other words, IMDSv2 requires the following two steps:

Obtain a token with a PUT request
Include the obtained token in the header and query metadata

6. How IMDSv2 Enhances Security

IMDSv2 increases the difficulty of attacks in the following ways:

1) Blocking simple GET requests

In IMDSv1, metadata could be retrieved with just a GET request.

curl http://169.254.169.254/latest/meta-data/

However, in IMDSv2 Required state, requests without a token will fail.

This means that if an SSRF vulnerability only allows URL manipulation, it is difficult to bypass IMDSv2.

2) Requiring PUT requests

IMDSv2 tokens are obtained via PUT requests.

Many SSRF vulnerabilities only allow simple GET requests or do not permit changing HTTP methods.

In such cases, attackers find it difficult to obtain a token.

3) Requiring custom headers

IMDSv2 requires the following header when querying metadata:

X-aws-ec2-metadata-token: <TOKEN>

For SSRF vulnerabilities that only allow URL manipulation, it is difficult to add this header.

4) Hop Limit control

IMDSv2 has an HttpPutResponseHopLimit setting.

This value limits how many network hops an IMDSv2 token response can traverse.

In a typical standalone EC2 environment, a value of 1 can be used.

However, in container environments, an additional network hop might occur, so a value of 2 may be necessary.

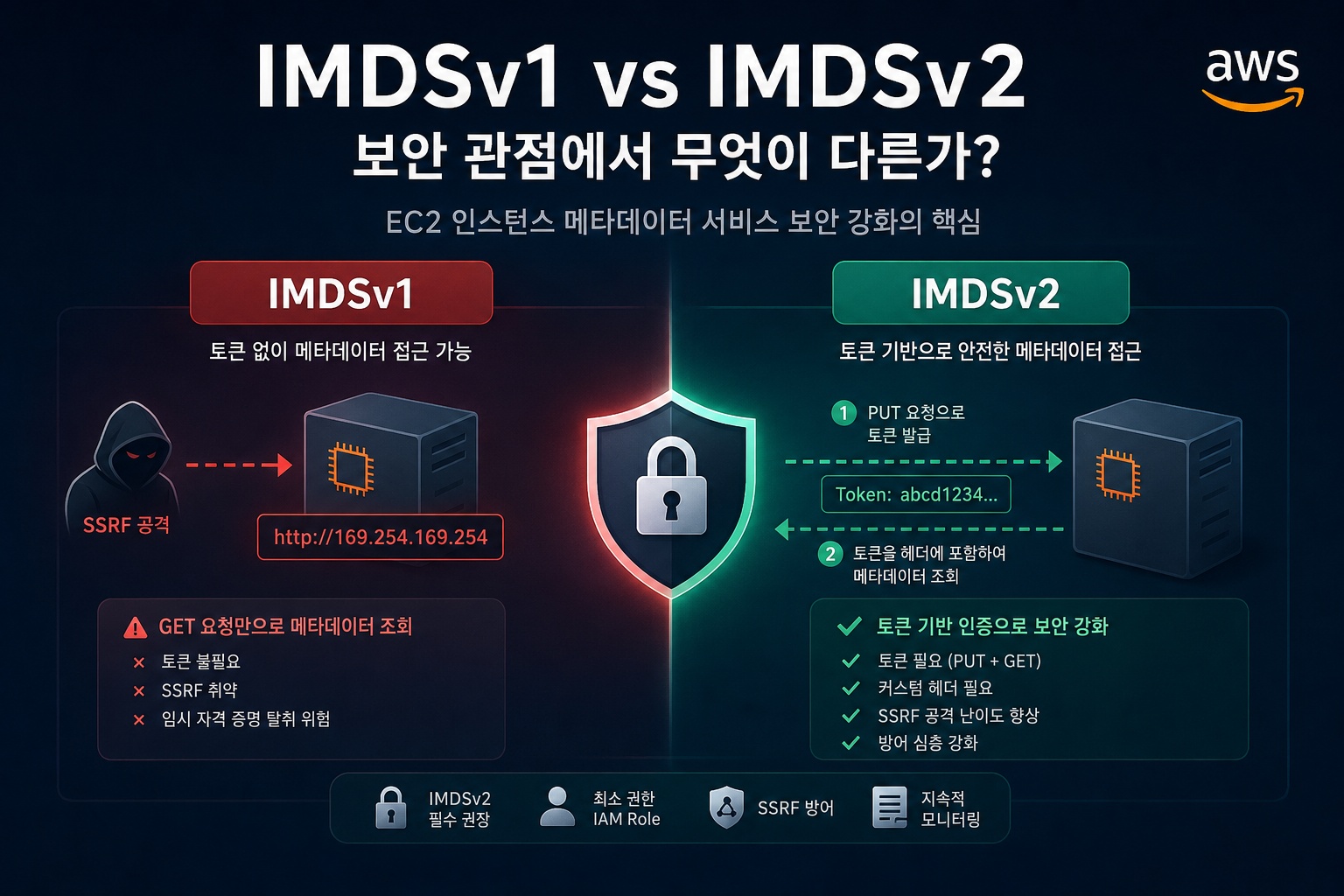

7. IMDSv1 vs IMDSv2 Comparison

Category	IMDSv1	IMDSv2
Metadata Retrieval Method	GET request	PUT to get token, then GET request
Token Required	No	Yes
SSRF Defense Capability	Low	Relatively High
Custom Header Required	No	Yes
HTTP Method	Mainly GET	PUT + GET
Operational Recommendation	For legacy compatibility	Recommended for production environments
Setting Value	Usable with HttpTokens=optional	Can be enforced with HttpTokens=required
Main Advantages	Simplicity, compatibility	Enhanced security
Main Disadvantages	Vulnerable to SSRF	Requires checking compatibility with older SDK/Agent versions

—

8. Key Settings for EC2 Metadata Options

Setting	Description	Recommendation
HttpEndpoint	Whether to use IMDS	disabled if not needed
HttpTokens	Whether IMDSv2 token is required	required recommended
HttpPutResponseHopLimit	IMDSv2 token response hop limit	1 for regular EC2, consider 2 for containers
InstanceMetadataTags	Whether to expose instance tags as metadata	disabled if not needed

In production environments, the following directions are generally recommended:

Instances that do not require IMDS: HttpEndpoint disabled
Instances that require IMDS: HttpTokens required
Regular EC2: Consider Hop Limit 1
ECS/EKS/Container environments: Consider Hop Limit 2
If instance tag lookup is not needed: InstanceMetadataTags disabled

9. Checking Current EC2 IMDS Settings

You can check the metadata options of current instances using the AWS CLI.

aws ec2 describe-instances
  --query 'Reservations[].Instances[].{
    InstanceId:InstanceId,
    State:State.Name,
    HttpEndpoint:MetadataOptions.HttpEndpoint,
    HttpTokens:MetadataOptions.HttpTokens,
    HopLimit:MetadataOptions.HttpPutResponseHopLimit,
    MetadataTags:MetadataOptions.InstanceMetadataTags
  }'
  --output table

Look at the HttpTokens value in the result.

optional: Both IMDSv1 and IMDSv2 are allowed
required: Only IMDSv2 is allowed

Therefore, if HttpTokens=optional, it is a candidate for transition review from a security perspective.

10. Changing Existing EC2 to IMDSv2 Required

To change an existing EC2 instance to IMDSv2 Required, you can use the following command:

aws ec2 modify-instance-metadata-options
  --instance-id i-xxxxxxxxxxxxxxxxx
  --http-tokens required
  --http-endpoint enabled

After the change, verify with the following command:

aws ec2 describe-instances
  --instance-ids i-xxxxxxxxxxxxxxxxx
  --query 'Reservations[].Instances[].MetadataOptions'
  --output json

If you need to set the hop limit to 2 in a container environment, you can apply it as follows:

aws ec2 modify-instance-metadata-options
  --instance-id i-xxxxxxxxxxxxxxxxx
  --http-tokens required
  --http-put-response-hop-limit 2
  --http-endpoint enabled

11. Applying IMDSv2 by Default to New EC2 Instances

In production environments, it is better to configure new instances to require IMDSv2 from the start, rather than modifying them after creation.

You can specify the following settings in a Launch Template:

{
  "MetadataOptions": {
    "HttpTokens": "required",
    "HttpEndpoint": "enabled",
    "HttpPutResponseHopLimit": 2
  }
}

You can also set account/region-wide default values using the AWS CLI.

However, if existing applications, agents, or SDKs do not support IMDSv2, failures may occur.

Therefore, in production environments, it is necessary to check for IMDSv1 usage before enforcing IMDSv2 immediately.

12. Checking for IMDSv1 Usage

Before transitioning to IMDSv2, you must check if there are any processes still using IMDSv1.

Typical verification methods are as follows:

Check CloudWatch MetadataNoToken metric

The MetadataNoToken metric is used to identify requests that accessed IMDS without a token.

Simply put, it’s a metric that can confirm if IMDSv1-style requests have occurred.

If this metric continues to increase, it means there are still applications or agents using IMDSv1.

Use IMDS Packet Analyzer

The IMDS Packet Analyzer provided by AWS can be used to identify which processes inside an instance are calling IMDSv1.

Before transitioning, it is recommended to check the following items:

Outdated AWS CLI
Outdated AWS SDK
Older SSM Agent versions
Older CloudWatch Agent versions
Custom curl scripts
Older application libraries

13. Recommended Transition Procedure from a Security Perspective

In a production environment, it is safe to transition in the following order:

Identify instances with HttpTokens=optional in the entire EC2 list
Check CloudWatch MetadataNoToken metric
Identify IMDSv1 calling processes with IMDS Packet Analyzer
Update AWS CLI, SDK, SSM Agent, CloudWatch Agent
Test IMDSv2 Required in development environment
Apply to staging environment
Apply sequentially to production instances
Reflect IMDSv2 Required in Launch Templates, Auto Scaling Groups, and AMI build pipelines
Set default for new instances to IMDSv2 Required
If organization-wide enforcement is needed, review SCP or account defaults

14. Is IMDSv2 Alone Sufficient?

IMDSv2 is a very important defense mechanism.

However, applying IMDSv2 alone does not eliminate all risks.

From a security perspective, the following countermeasures should be applied together:

IAM Role Least Privilege

The most critical information that can be exfiltrated via IMDS is IAM Role temporary credentials.

Therefore, EC2 Roles should be granted only the minimum necessary permissions.

A bad example is as follows:

{
  "Effect": "Allow",
  "Action": "*",
  "Resource": "*"
}

A good example is to restrict only the necessary services and resources.

{
  "Effect": "Allow",
  "Action": [
    "s3:GetObject"
  ],
  "Resource": [
    "arn:aws:s3:::example-bucket/app/*"
  ]
}

SSRF Defense

Features in web applications that accept external URLs and have the server directly make requests should be handled with caution.

The following addresses are generally targets for blocking:

169.254.169.254
fd00:ec2::254
127.0.0.1
localhost
RFC1918 private IP ranges
Link-local addresses
Internal DNS names
Cloud metadata endpoints

Furthermore, if a redirection occurs, the final destination must also be re-validated.

DNS Rebinding attacks should also be considered.

Container Environment Privilege Separation

In ECS or EKS environments, you should check if containers can use the Instance Profile permissions of the EC2 node.

If possible, it is recommended to use the following structure:

ECS: Use Task Role
EKS: Use IRSA or EKS Pod Identity
Minimize Node Role permissions
Review the necessity of IMDS access from Pods or containers

If containers can access the node’s IMDS and the node’s Role permissions are excessive, a container compromise could lead to an escalation of AWS account privileges.

15. IMDSv2 from a CIS Benchmark Perspective

CIS AWS Foundations Benchmark and cloud security assessment standards consider EC2 metadata service settings as important security items.

Specifically, they can be checked from the following perspectives:

Is IMDSv1 allowed?
Is IMDSv2 Required applied?
Are excessive permissions granted to the EC2 Role?
Is it necessary to expose instance metadata tags?
Is there a possibility of node Role permissions being exposed in container workloads?

Automated diagnostic scripts typically check the MetadataOptions value in the describe-instances result.

For example, diagnostics can be performed based on the following criteria:

HttpTokens == required 이면 양호
HttpTokens == optional 이면 취약 또는 개선 필요

However, in a production environment, checking application compatibility takes precedence over simply changing settings with commands.

16. Practical Conclusion

IMDSv1 is an older method that allows metadata retrieval with simple GET requests.

Because of this, when combined with SSRF vulnerabilities, EC2 IAM Role temporary credentials can be exposed.

IMDSv2 uses token-based sessions.

First, a token must be obtained with a PUT request, and then the token header must be included in subsequent requests.

Thanks to this structure, it becomes difficult to exfiltrate metadata with simple SSRF attacks.

In production environments, the following criteria are recommended:

Apply IMDSv2 Required if possible
Disable IMDS for instances that do not require it
Design EC2 IAM Roles with least privilege
Apply SSRF defense logic
In container environments, use Task Role, IRSA, or EKS Pod Identity
Before transition, check MetadataNoToken metric and agent compatibility

To summarize in one sentence:

IMDSv1 is a legacy method focused on compatibility, while

IMDSv2 is a security enhancement method designed to reduce the risk of SSRF and metadata exfiltration.

In production environments, it is safer to set IMDSv2 Required as the default, unless there is a specific reason not to.

Reference Links

AWS EC2 User Guide – Instance Metadata Service

AWS EC2 User Guide – Configure instance metadata options

AWS Security Blog – Add defense in depth against SSRF vulnerabilities

AWS Security Blog – Get the full benefits of IMDSv2 and disable IMDSv1
